A few options on joint details. We have a range of 30° on the angle of intersection for each joint. We are proposing that there are then 6 details, each of which can acommodate a variation of 5°. Rieder is confident that their material is strong enough, and their fabrication process acurate enough, that we could do a concrete on concrete joint, with no gaskets or fixings. AKT is not confident about this approach. Not only do they want the gasket, but they also want a mechanical or adhesive fixing. Above is a range of options showing a range of 6 variations each on a gasket-less variable notch detail, and two rubber gasket details.AKT is also proposing a series of details, which we will post later.
All of the details will be tested through AKT.

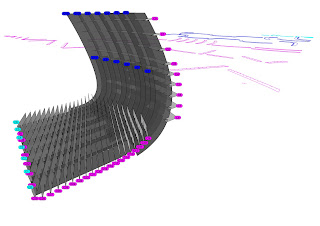

In parrallel, we are producing a 1:1 scale plywood mock-up to test fitting and assembly. Here's some images of the 3D model of this mock-up. Yosuke will be coordinating a team of the current DRL phase one students to fabricate and assemble this mock up.
Once again, special thanks to Marc Fornes of theverymany for his assistance with providing the Rhino scripting tools to notch and unroll these surfaces!!
the 58 unrolled profiles for the mock up, notched and ready to be cut...
